Waves CMBAXISLV64 eMotion LV1 64-Channel Mixer System with Axis One

The Waves eMotion LV1 64-Channel Mixer with Axis One Custom Computer is a world-class live sound mixing solution, purpose-built for professional environments such as concert venues, touring rigs, broadcast studios, houses of worship, and clubs. Combining the cutting-edge eMotion LV1 live mixing software with the Waves Axis One computer, a Netgear 8-port gigabit switch, and four premium eMo plug-ins, this system offers the ultimate foundation for high-end SoundGrid audio networking. Just add a SoundGrid server and compatible I/O interfaces (sold separately), and you have a scalable, ultra-low-latency digital mixing powerhouse ready for any professional stage or production workflow.

Mixing Redefined: eMotion LV1 64-Channel Software

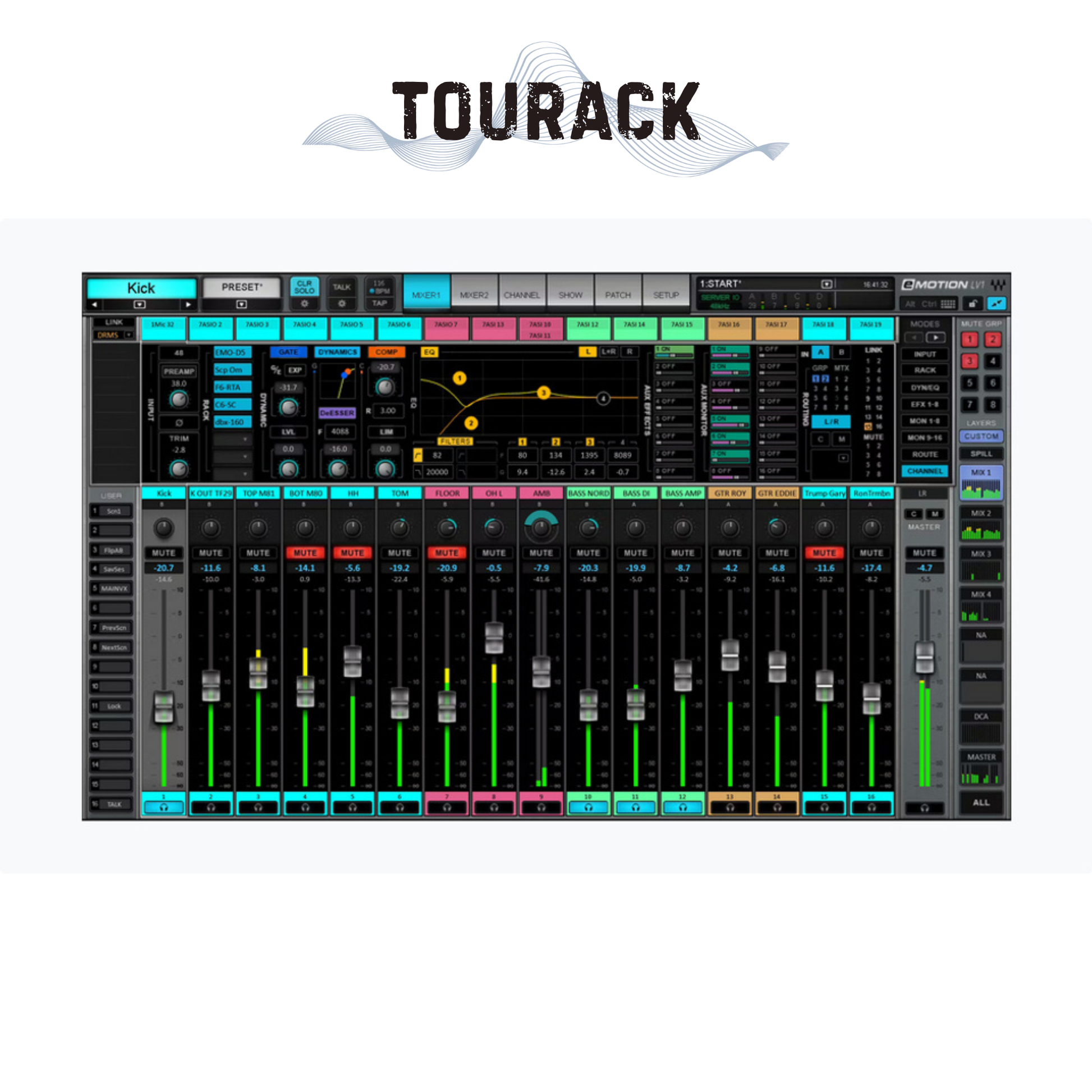

At the heart of this system is the Waves eMotion LV1, a software-based 64-channel digital console that brings pristine 32-bit floating-point audio processing and sample rates up to 96 kHz to your stage or studio. Every channel offers eight plug-in slots, allowing engineers to run Waves or third-party SoundGrid-compatible plug-ins directly on each channel, from EQs and compressors to reverbs and effects, with latency as low as 0.8ms.
Designed for front-of-house, monitor, and broadcast mixing, eMotion LV1 supports 16 aux sends, 8 groups, 8 stereo matrices, and 16 DCA faders, giving you the flexibility of a top-tier digital console inside a sleek, modular system.

You’ll find a fully customizable interface with six flexible control windows (Mixer 1, Mixer 2, Channel, Show, Patch, and Setup), optimized for multitouch control across up to four screens. With Sends-on-Faders mode, recall-safe options, and up to 1,000 scene memories, eMotion LV1 provides studio-grade precision and touring-level reliability in one intelligent platform.

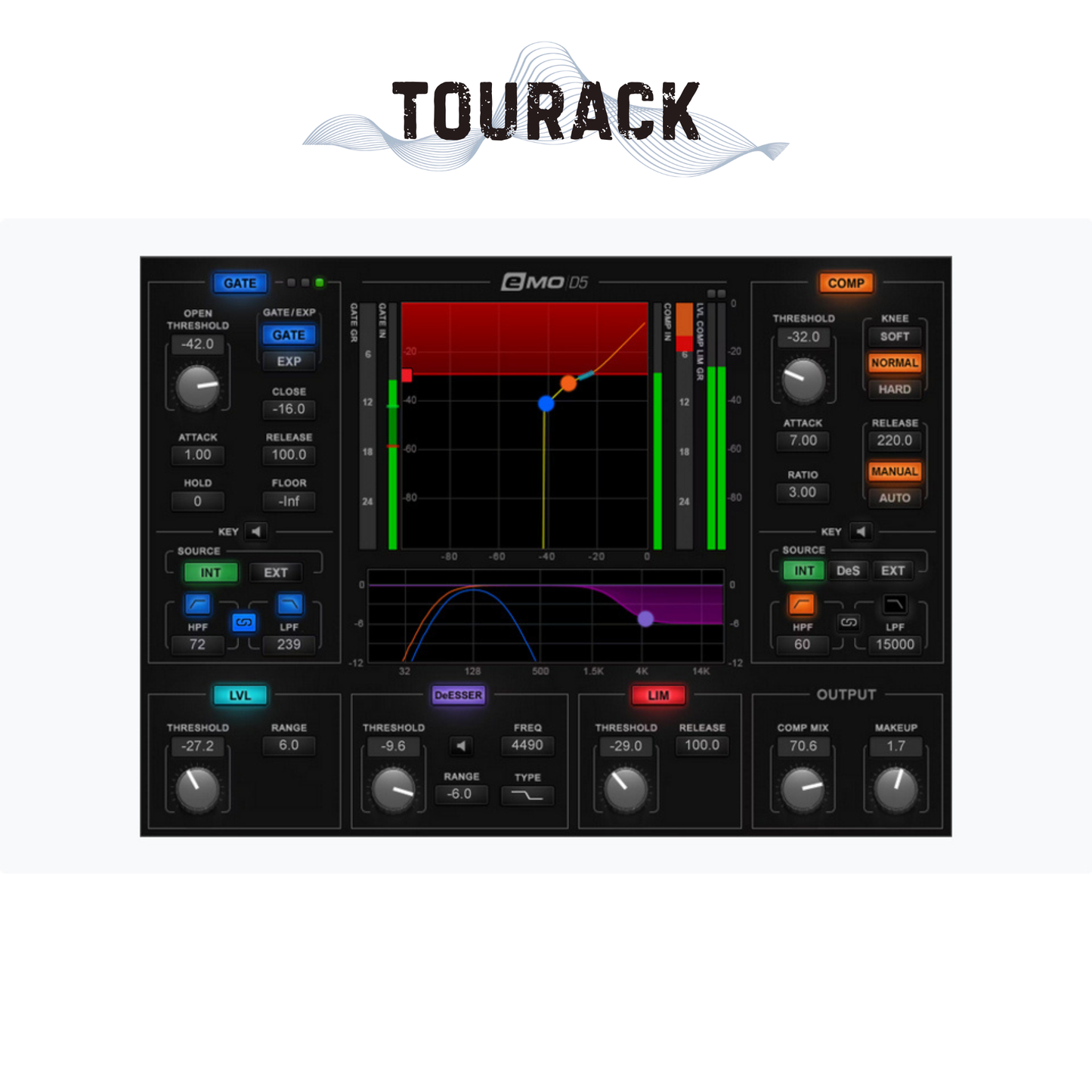

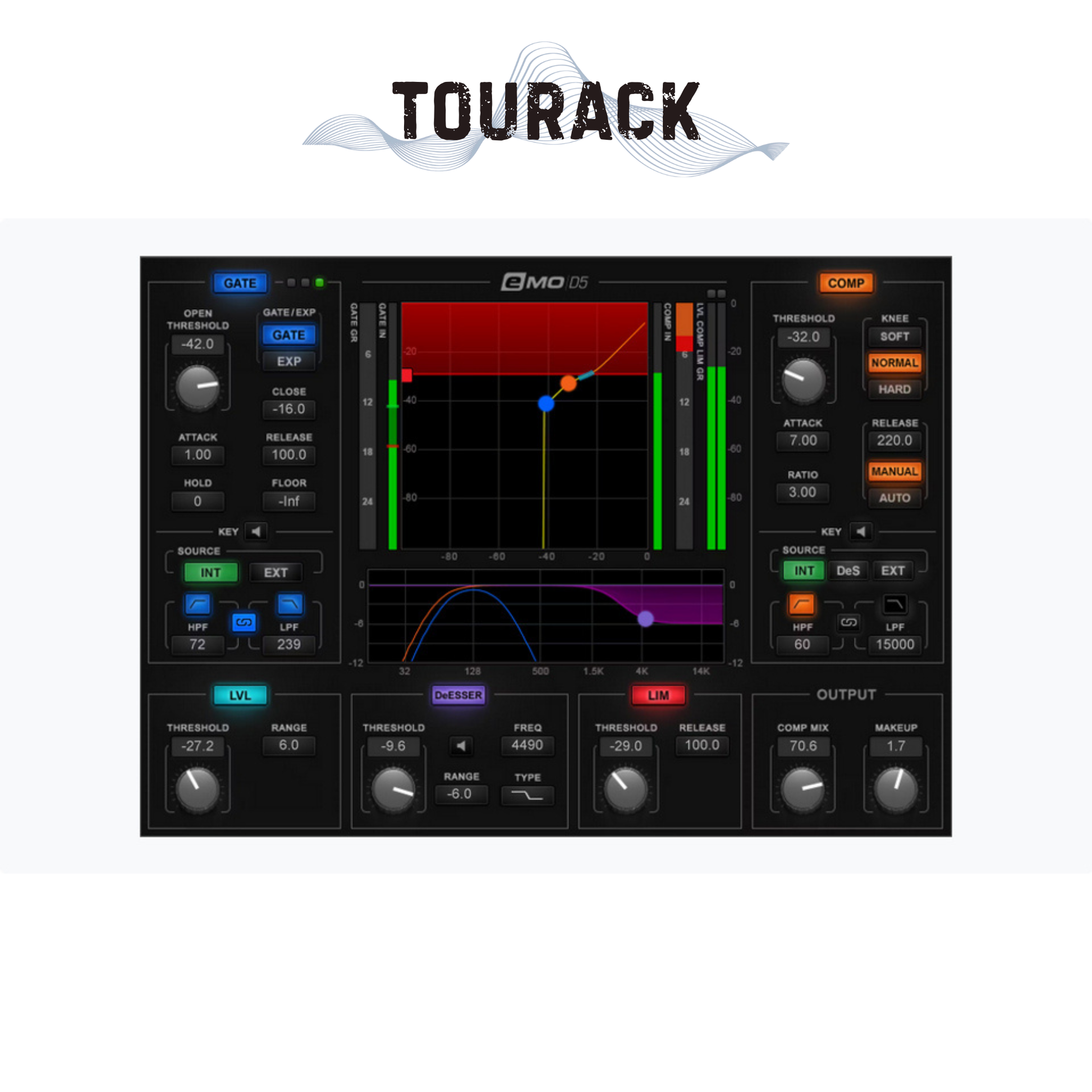

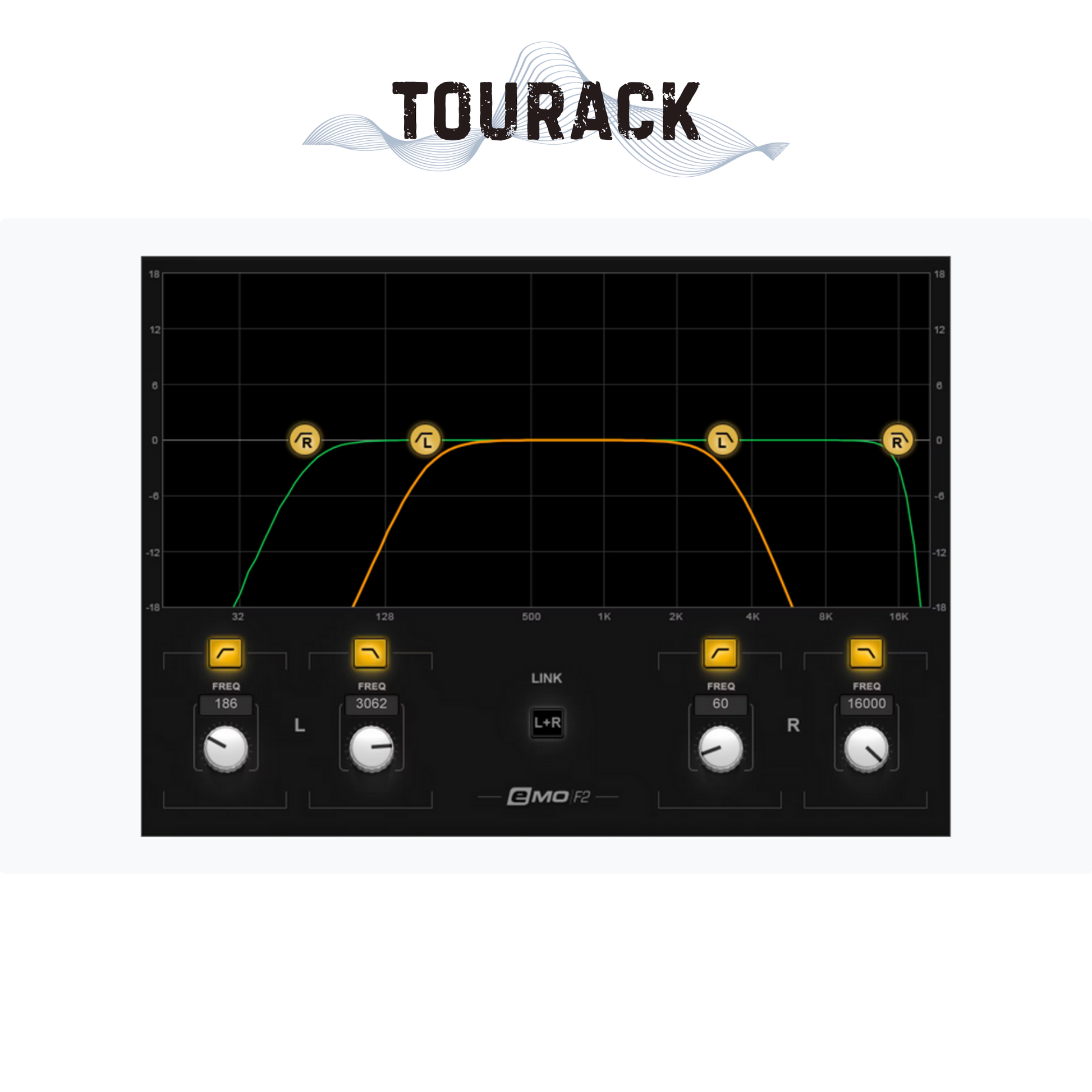

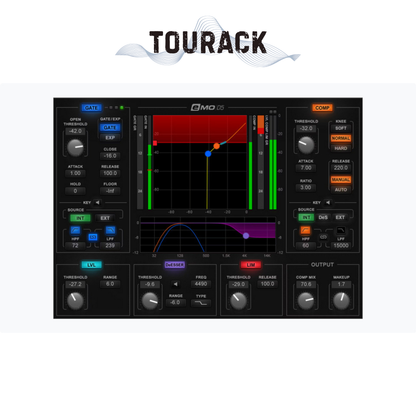

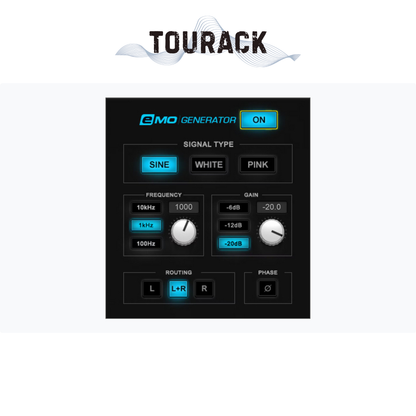

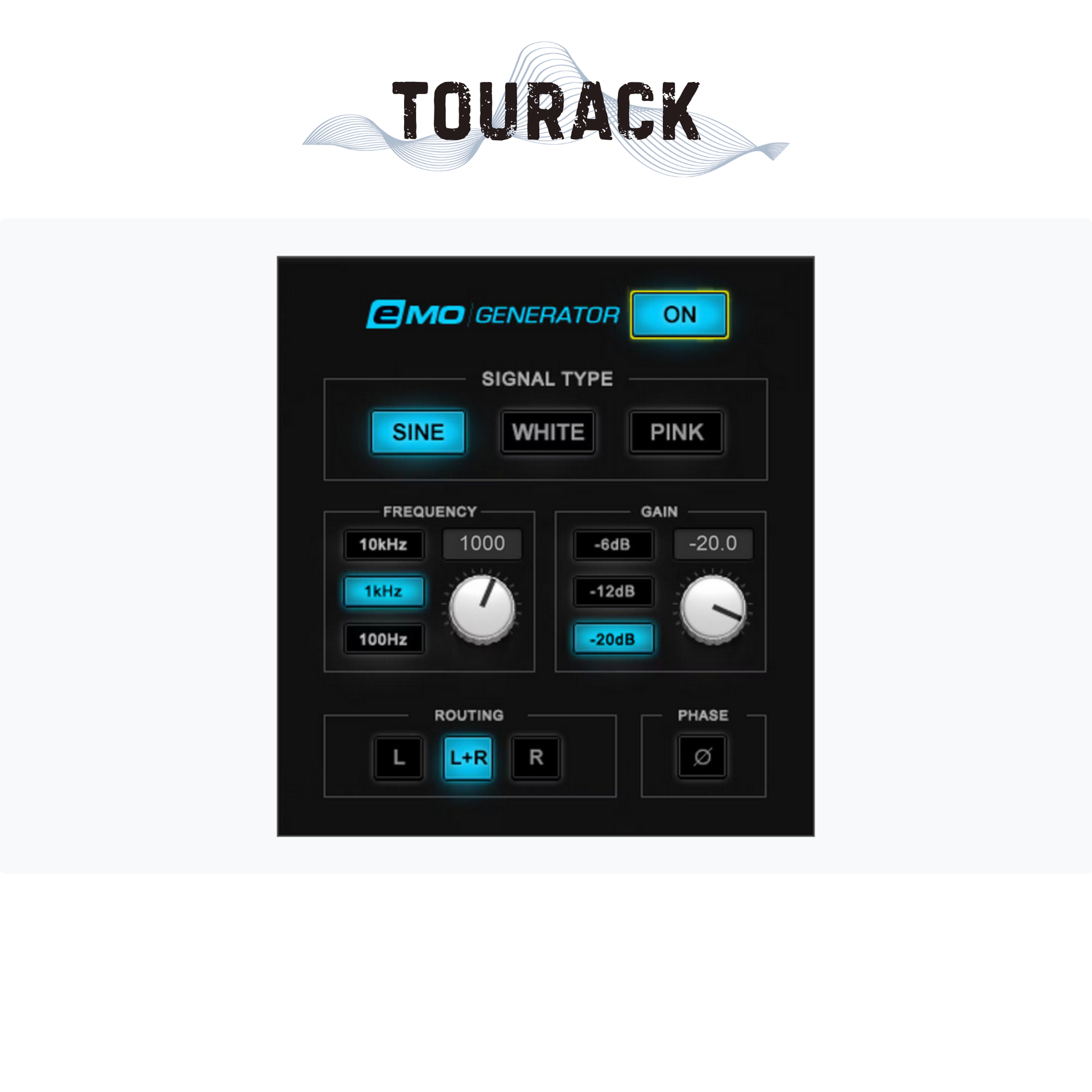

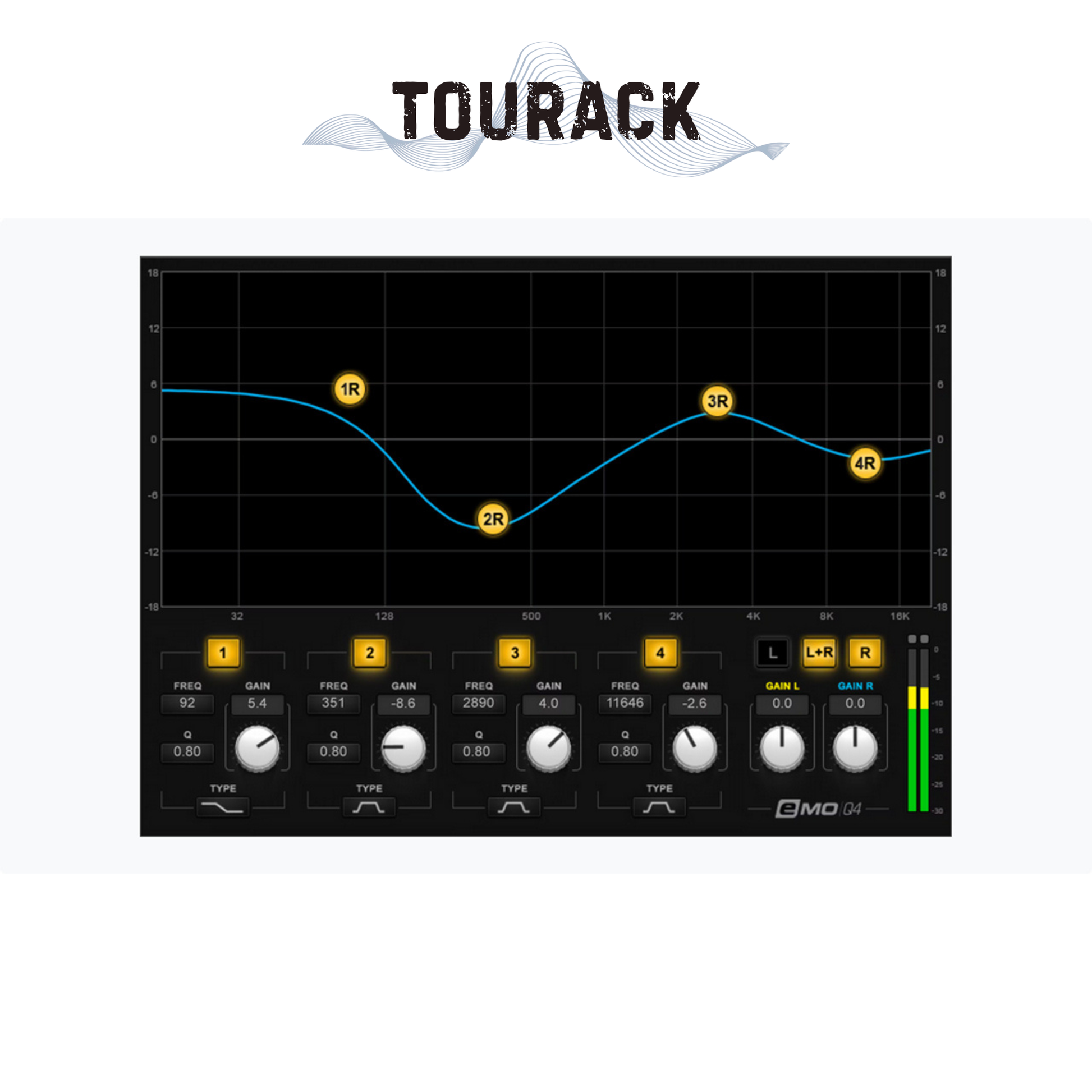

Included with the software are four essential Waves live plug-ins, eMo D5 Dynamics, eMo F2 Filter, eMo Generator, and eMo Q4 Equalizer, engineered for ultra-efficient live performance and sound shaping right out of the box.

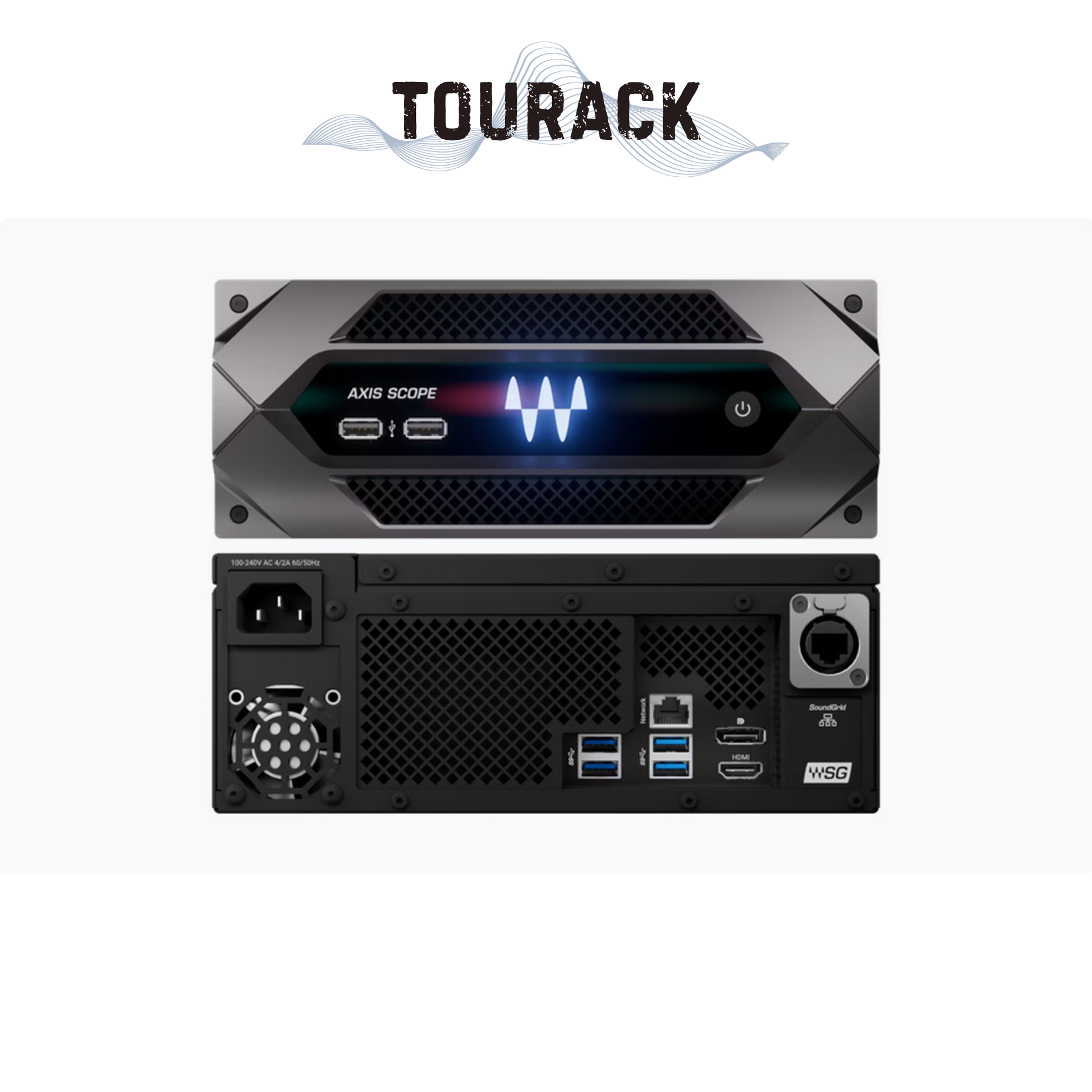

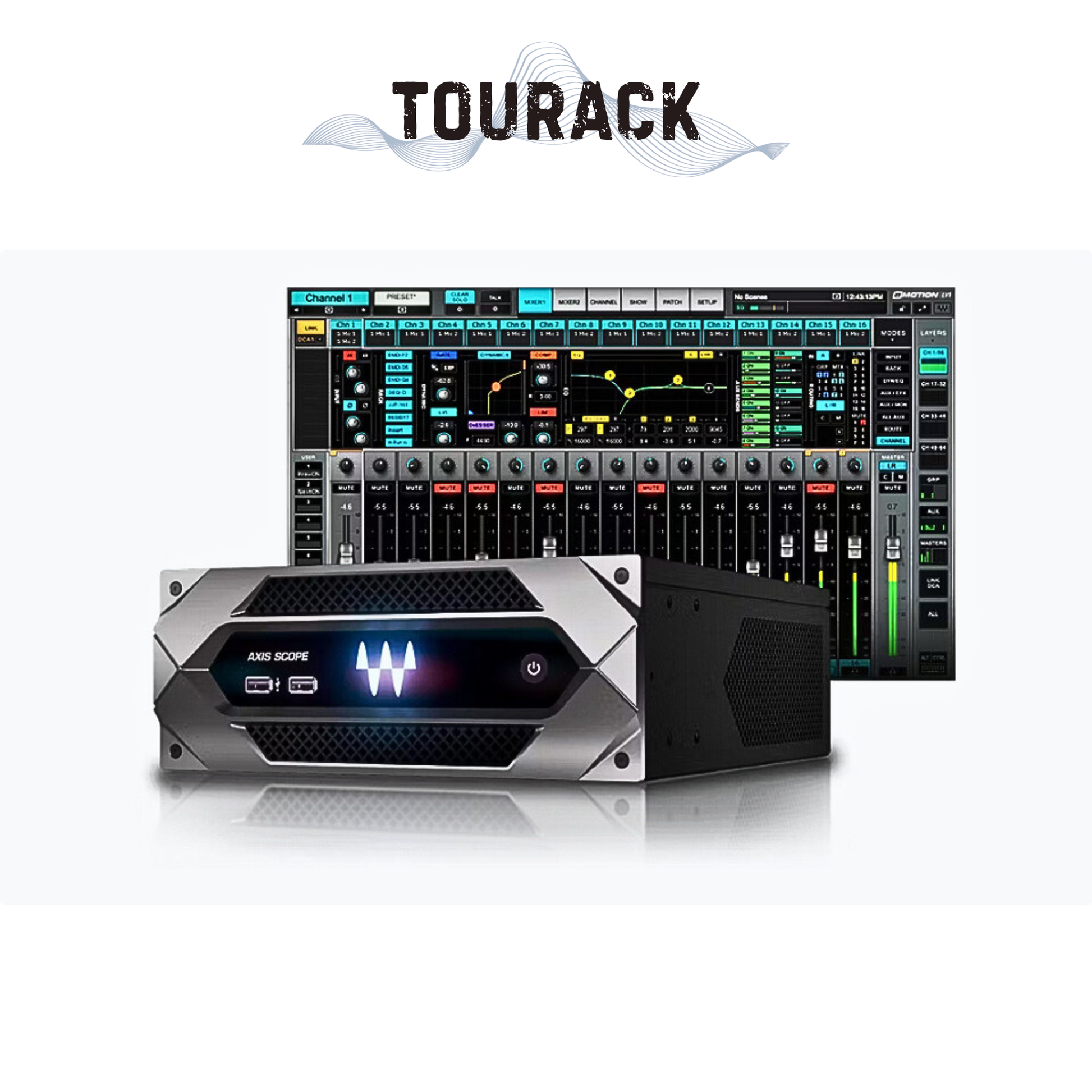

Waves Axis One: The Optimized Core

Engineered and tested by Waves, the Axis One custom computer is designed for maximum performance and stability in mission-critical audio environments. It features a 6-core Intel i5-8500 processor, 16GB of DDR4 RAM, and a 256GB SSD for ultra-reliable operation under demanding conditions. Preloaded with Windows 10, Waves Central, eMotion LV1, SuperRack, and the complete Waves plug-in suite (licenses sold separately), Axis One is optimized for smooth SoundGrid operation without the typical compatibility issues of generic PCs.

Its compact 2RU rackmount design and rugged metal chassis make it ideal for touring and installation. Connectivity includes two HDMI ports, one DisplayPort (supporting up to three monitors), eight USB-A ports, one USB-C port, etherCON SoundGrid port, and standard RJ45 Ethernet, giving you the flexibility to integrate multiple displays, controllers, and network devices with ease.

SoundGrid Network Integration

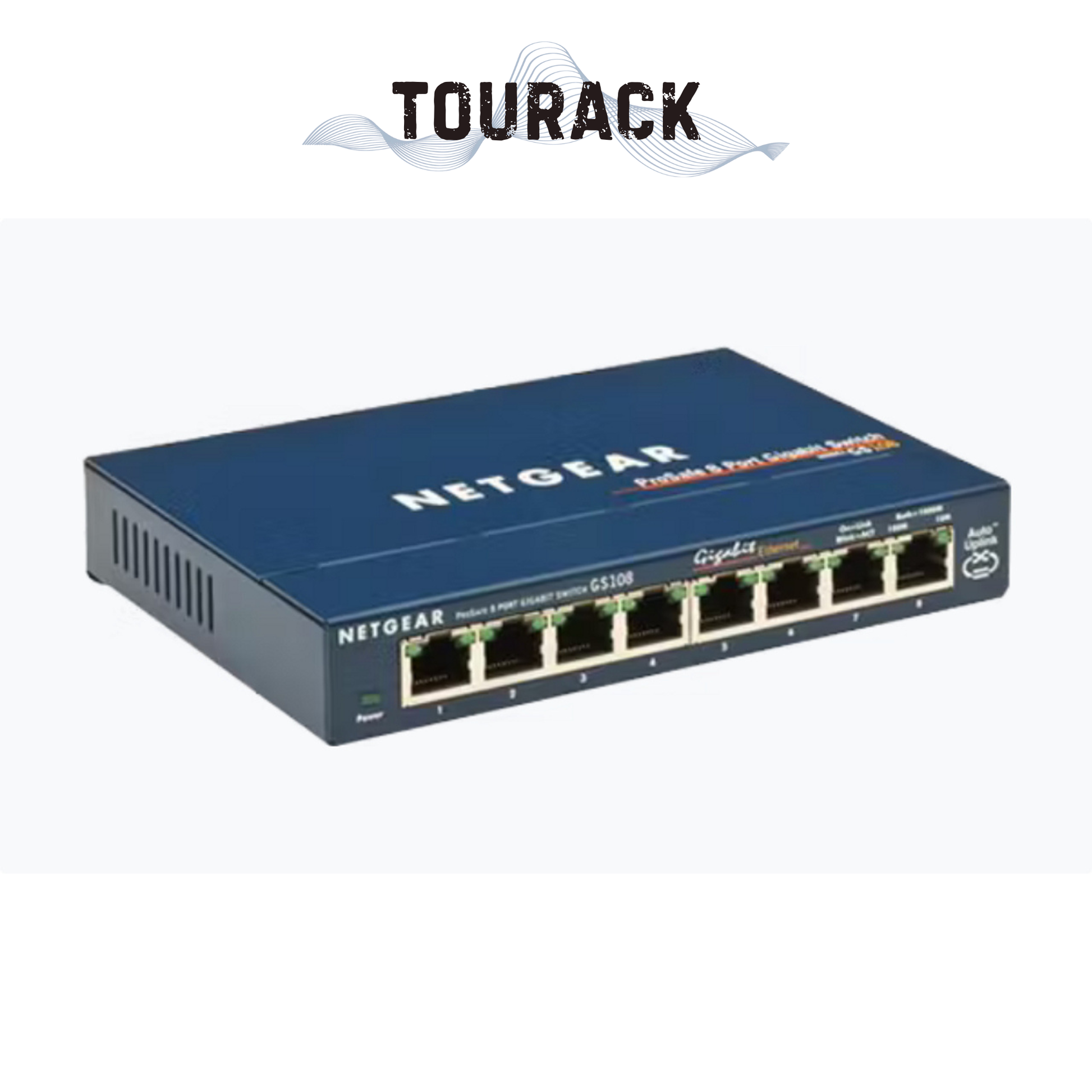

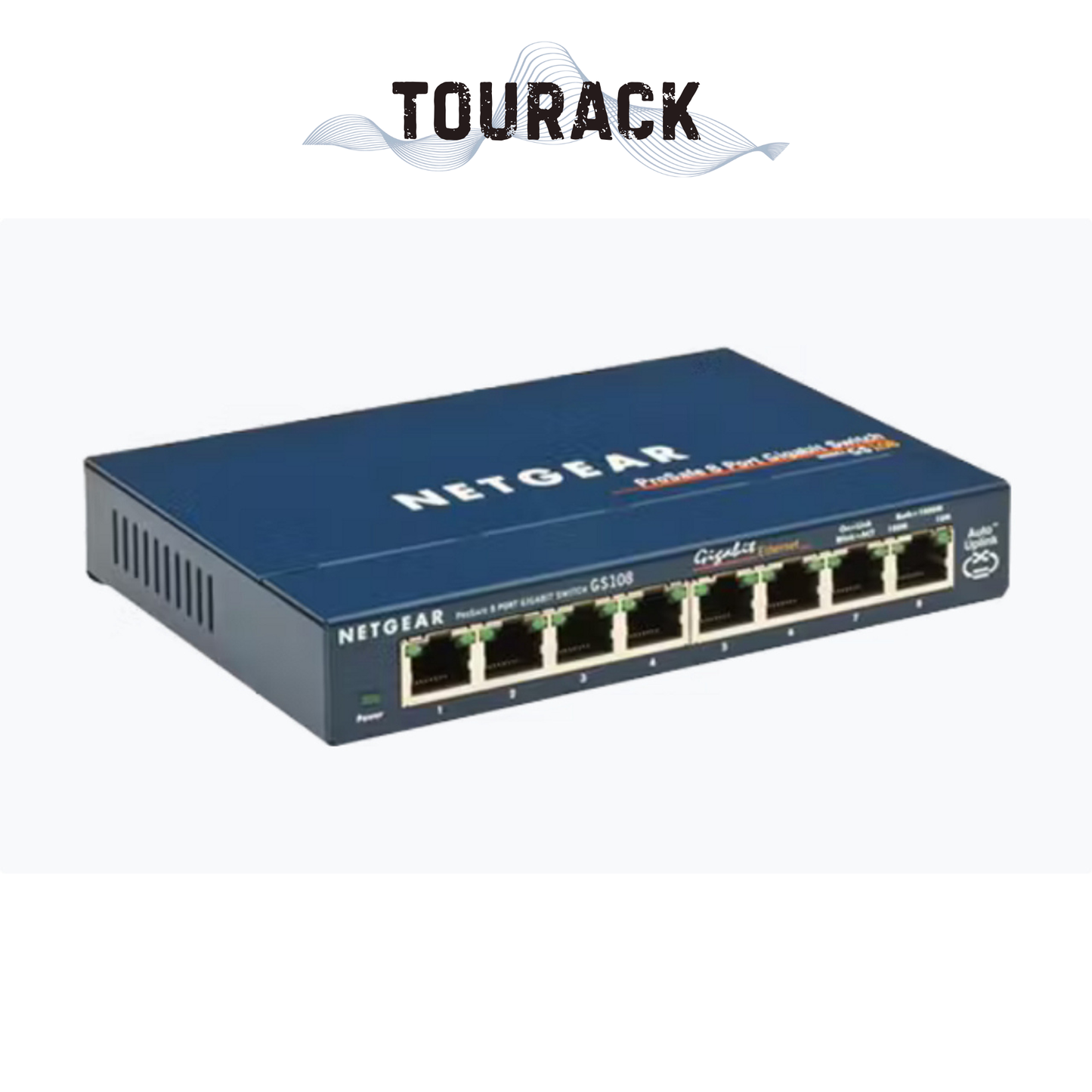

The included Netgear GS108 ProSAFE 8-Port Gigabit Switch ensures stable and efficient communication between the LV1 mixer, Axis One computer, SoundGrid server, and I/O devices. Designed for plug-and-play reliability, it automatically adjusts network speed and cabling type while supporting IEEE 802.1p and DSCP-based QoS for optimized audio priority and Energy Efficient Ethernet (802.3az) compliance to reduce power usage.

This high-performance switch delivers non-blocking Gigabit throughput, maintaining flawless data flow even under demanding multichannel sessions, ensuring your entire SoundGrid system operates at peak performance.

Professional-Grade Flexibility

The Waves eMotion LV1 64-channel system is completely modular. Add SoundGrid interfaces ranging from small preamp units to 128-channel DiGiGrid I/Os, and scale your setup as your needs evolve. You can configure the system as a portable workstation for touring engineers or as a fixed installation for venues and broadcast facilities. Built-in redundancy options, scene automation, and latency compensation make it as dependable as it is powerful.

Key Features

• Complete 64-channel Waves eMotion LV1 mixing software with Axis One computer

• 32-bit floating-point processing and <1ms latency for pristine live sound

• Built-in support for up to 8 plug-ins per channel (Waves or third-party)

• 16 auxes, 8 groups, 8 matrices, and 16 DCA faders for total routing control

• Optimized for multitouch displays and external control surfaces

• Axis One computer: Intel i5-8500, 16GB RAM, 256GB SSD, Windows 10

• Includes eMo D5, eMo F2, eMo Generator, and eMo Q4 plug-ins

• Netgear GS108 8-port Gigabit switch included for SoundGrid networking

• Scalable with additional SoundGrid servers and I/O units (sold separately)

• Ideal for touring rigs, fixed installations, houses of worship, and live production

Technical Specifications

• Audio Channels: 64 mono/stereo inputs, 36 bus/return channels

• Processing: 32-bit floating point

• Sample Rate: 44.1–96kHz

• Latency: As low as 0.8ms

• Plug-ins per Channel: Up to 8

• Displays Supported: Up to 4 multitouch screens

• Scenes: 1,000

• CPU (Axis One): Intel i5-8500, 6 cores @ 3.0GHz

• Memory: 16GB DDR4

• Storage: 256GB SSD

• Ports: 8x USB-A, 1x USB-C, 1x etherCON, 1x RJ45, 2x HDMI, 1x DisplayPort

• Dimensions (Axis One): Half-rack 2RU format

• Switch: Netgear GS108 8-Port Gigabit Ethernet

• Operating System: Windows 10

Included in the Box

• Waves eMotion LV1 64-Channel Live Mixer Software (Download)

• Waves Axis One Custom Computer

• Netgear GS108 ProSAFE 8-Port Gigabit Switch

• Ethernet and Power Cables

• Preinstalled Waves Central and eMo plug-ins

Tourack’s Expert Take

The Waves CMBAXISLV64 eMotion LV1 System is a modular, future-ready solution that bridges the gap between live performance and studio-grade mixing. Whether you’re mixing front-of-house at a festival, managing multiple broadcast feeds, or running high-end production in a worship environment, this setup offers unbeatable sonic accuracy, flexibility, and expandabilit, all backed by Waves’ industry-leading SoundGrid ecosystem.
